VistaLuxe Elevation Drawings

VistaLuxe Elevation Drawings

June 14, 2017

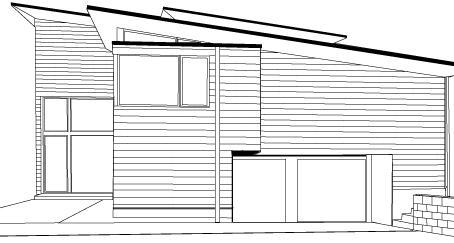

Elevation drawings for VistaLuxe products are now available in our Architect Library.

At Kolbe, we want to make it easier for you create your vision for contemporary projects. Therefore, we have added elevation drawings for many VistaLuxe® Collection products to the Architect Library. These drawings include:

  • Casements & Awnings
  • Inswing & Outswing Doors, Transoms and Sidelites
  • Direct Sets
  • Sliding Patio Doors & Transoms
  • Single, Double, Triple and Quad Sliding Windows


VistaLuxe elevation drawings are available in DWG, DXF and PDF formats for various uses. Single files may be downloaded, or several files may be selected and saved to a folder for a single download of multiple files and/or file types.

Elevations are one more tool to help you include VistaLuxe Collection and Complementary windows and doors in your projects.

To view VistaLuxe elevation drawings, go to the Architect Library, select VistaLuxe Collection, select an operation(s), and select "Elevation Charts".
