Multiple Assemblies

Units can be combined with single units in single frames, which is called "box-to-box assembly." VistaLuxe® Collection and Forgent Series products are all built with box-to-box assembly.

Alternatively, several sash can be combined in a single frame, which is called "continuous sill assembly." All Ultra Series casement and awning units now have continuous sill assembly, regardless of the sash widths or number of sash in the unit – up to 144 inches wide.

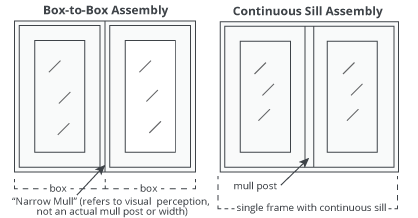

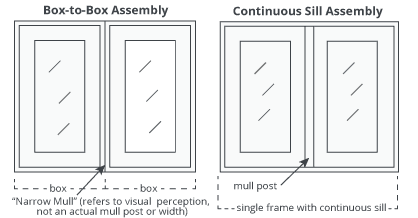

Multiple Assembly Types

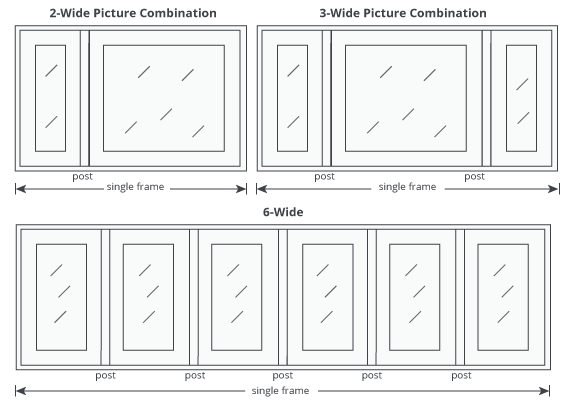

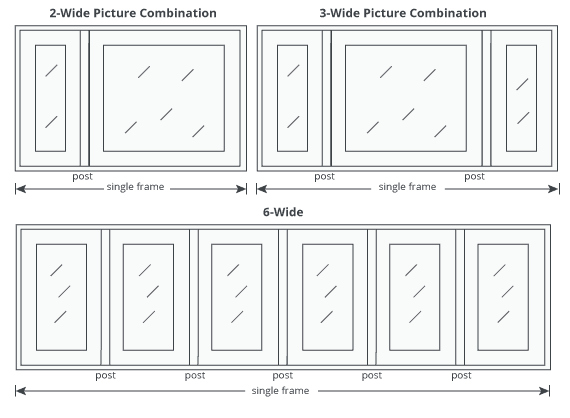

Ultra Series Casement Mull Examples

Ultra Series Casement Mull Examples

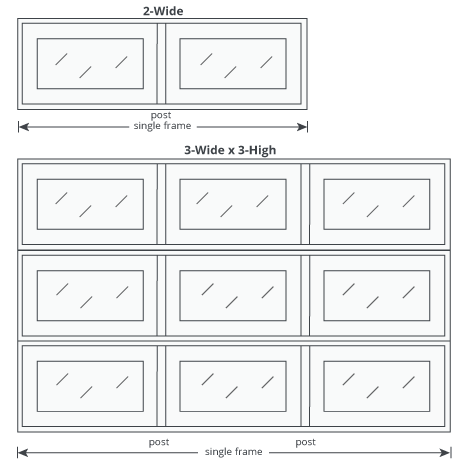

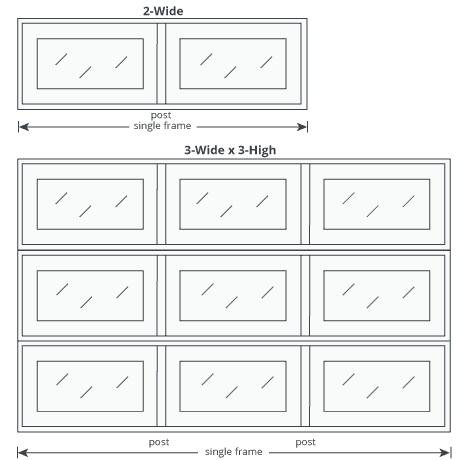

Ultra Series Awning Mull Examples

Ultra Series Awning Mull Examples



Heritage Series casements and awnings have continuous sill assembly on 2- and 3-wide units with equal-sized sash. Standard construction varies on other units. See the illustrations below for details of standard and optional assembly methods for those units.

Heritage Series Casement Mull Examples
Heritage Series Casement Mull 4-Wide Heritage Series Casement Mull 5-Wide Heritage Series Casement Mull 6-Wide Heritage Series Casement Mull 2-Wide Picture Heritage Series Casement Mull 3-Wide Picture

Heritage Series Awning Mull Examples

Heritage Series Awning Mull 2-Wide by 1-High Heritage Series Awning Mull 3-Wide by 1-High
Heritage Series Awning Mull 2-Wide by 2-High Heritage Series Awning Mull 3-Wide by 2-High
Heritage Series Awning Mull 2-Wide by 3-High Heritage Series Awning Mull 3-Wide by 3-High
Heritage Series Awning Optional Mull 3-Wide by 1-High

Size Limitations for Mulled Window & Door Units

Ultra and Heritage Series mulled units cannot exceed 168" (14 feet) x 108" (9 feet) overall. Larger sized mull unit assemblies may be possible, but require alternate installation methods or field mulling. The glass ratio cannot exceed 6:1 for annealed glass or 8:1 for tempered glass. VistaLuxe Collection mulled units cannot exceed 120" (10 feet) x 96" (8 feet) overall.

NOTES: Large assemblies may be knocked-down by the factory for shipping and/or may need to be designed with structural reinforcement.
Rough openings and opening dimension calculations are available on the Rough Opening Statement page.
